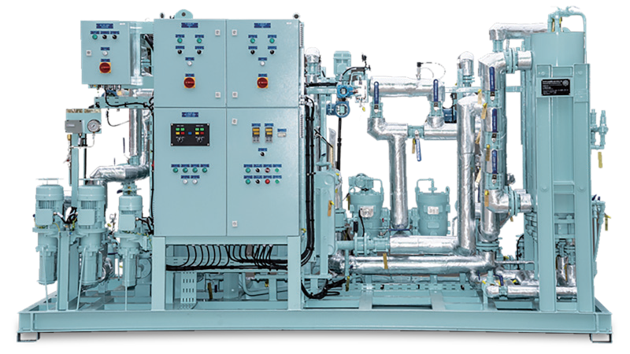

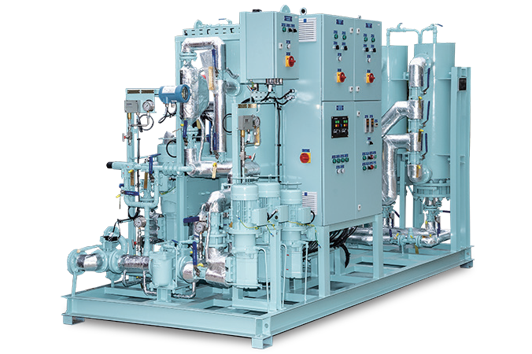

HiQ-FO is a Fuel oil supply system.
The system supplies the fuel from the service tank to marine engine.
It can be delivered as a modular unit (fuel oil supply module and booster module), tested and ready for service supply connections.
Features
Fuel Conditioning
Components
HiQ-FO Flow Diagram
| TAG | NAME | TAG | NAME | TAG | NAME |
10.1/2/3 |
Change-over Valve |
2.3 |
Automatic Back-flushing Filter |
5.1/2 |
Oil Heater |
2.1/2 |
Simplex Strainer |
3.1 |
Consumption Measuring System |
9.1 |
Heating Medium Control Valve |
1.1/2 |
Supply Pump |
4.1 |
Pressure Mixing Tank |
6.1 |
Viscosity Control System |
7.1 |
Pressure Control System |
1.3/4 |
Booster Pumps |
5.3 |
MGO Cooler |
4.2 |
Compensation Damping Tank |
|
|
|
|
