Onshore Power Supply (OPS) System
HiQ-AMP is a modular, containerized shore power connection system which provides a secured electrical power supply from the local grid to vessel.
It provides easy operation, safety secured system to ship-owners.
Feature - Simple and Modular shore power connection system,
- Meets IEC/ISO/IEEE 80005-1 requirements and global standards
- Satisfies class requirements: DNV/ABS/LR/KR/BV and others
- Provides black-out free switching and customized solutions
It provides easy operation, safety secured system to ship-owners.
Feature - Simple and Modular shore power connection system,
- Meets IEC/ISO/IEEE 80005-1 requirements and global standards
- Satisfies class requirements: DNV/ABS/LR/KR/BV and others
- Provides black-out free switching and customized solutions
Benefits
- Safety First Solution: Black-out free
- Turnkey solution from design to commissioning and after service through our global service network

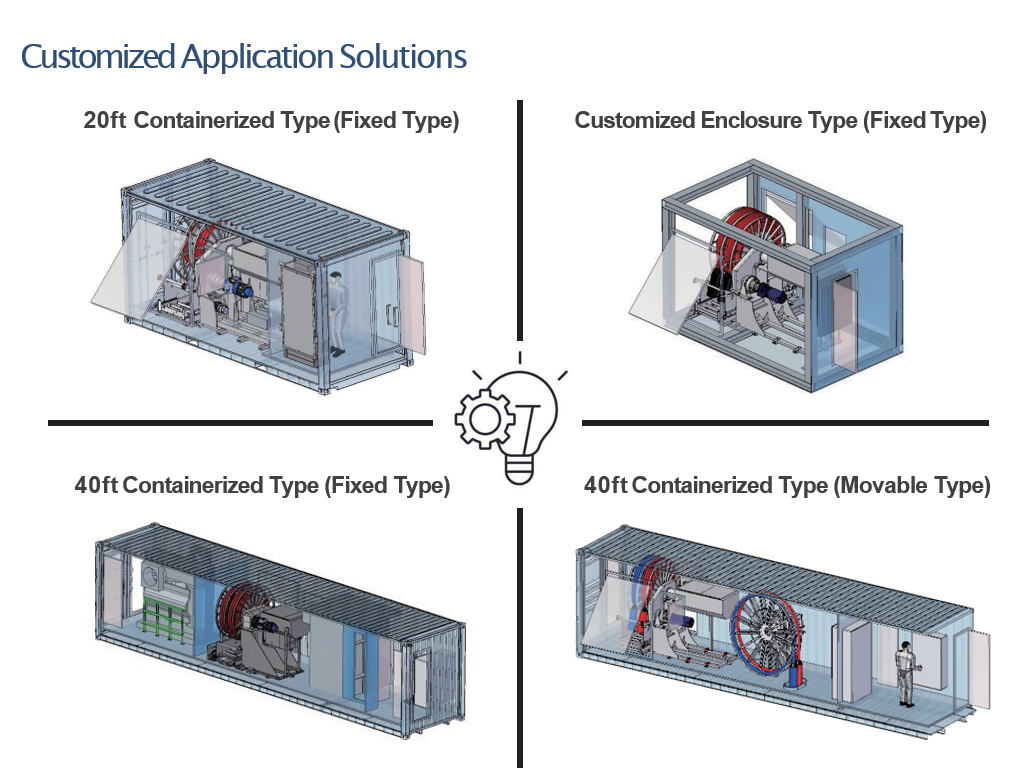

- Customized AMP Solutions (Container Type or Enclosure Type)
- Long time proven technology and certified key components
- Long experience in marine industry; Ship's Classification Requirements
- Strong and reliable business partner over 45 years
Major Specifications
- Turnkey solution from design to commissioning and after service through our global service network
- Customized AMP Solutions (Container Type or Enclosure Type)
- Long time proven technology and certified key components
- Long experience in marine industry; Ship's Classification Requirements
- Strong and reliable business partner over 45 years
Major Specifications
| No | Items | Contents | Remark |
1 |
Module size |
20ft/ 40ft container |
Can be customized |
2 |
Integration |
Fixed / Mobile |
|
3 |
Shipside Transformer |
As required |
for LV |
4 |
Reel Cable length |
55m |
Can be customized |
5 |
Shore side power |
AC 6.6 kV / AC 11 kV |
|
6 |
Shipside power |
AC 6.6 kV / AC 450 V |
60 Hz / 50 Hz with frequency converter |
7 |
Power rating |
6 MW / 8 MW |
Can be customized |
8 |
Protection Class |
IP56 |
for Container |
9 |
Ship Power connection |
Bolted / Plugged |
|
10 |
Automatic tension control |
Applied |
|
11 |
Automatic power recovery |
As required |
Automatically return to onboard power |
