The world first BWTS, adopting side stream electrolysis without filter,
developed by HHI.
The system will satisfy shipowner’s demands such as MORE COST EFFECTIVE, MORE SIMPLE and MORE RELIABLE BWTS regardless of turbidity of intake water.
The system will satisfy shipowner’s demands such as MORE COST EFFECTIVE, MORE SIMPLE and MORE RELIABLE BWTS regardless of turbidity of intake water.

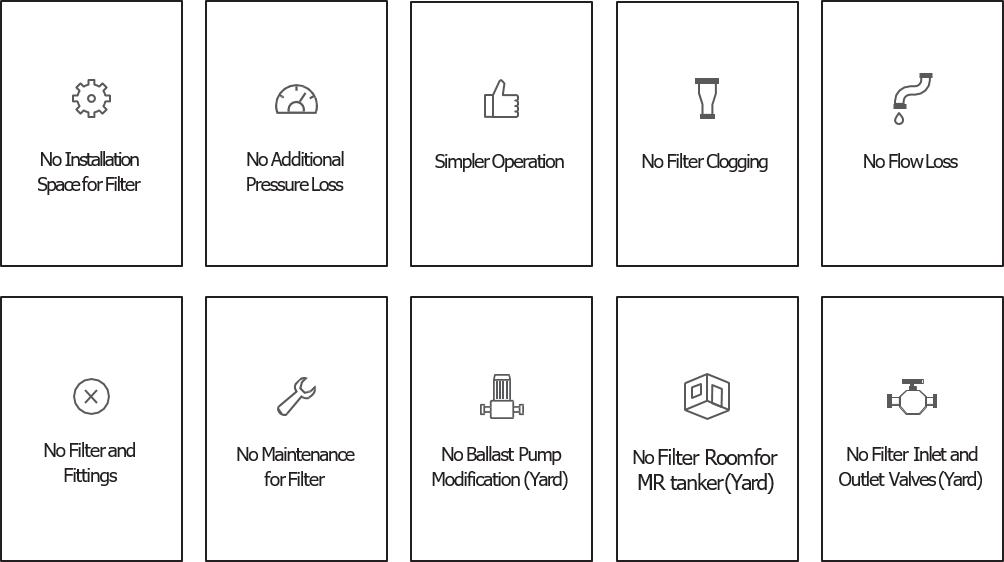

Features
Optimization & Cost Savings

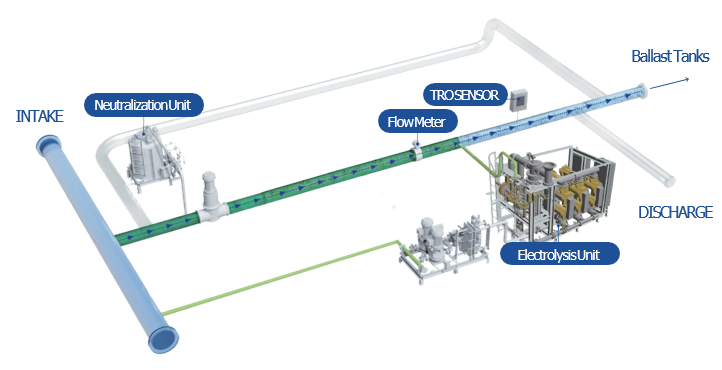

HiBallast NF Configuration
Representative Models (75m³/h ~ 10,000m³/h)
| Representative MODEL | Treatment Capacity (m³/h) | EU Dimension LxWxH (mm) | EU Weight (kg) | Power Consumption (kW) (at 30 PSU) |
HiB-500 |
500 |
3000x2150x3100 |
3,000 |
25 |
HiB-1000 |
1,000 |
3000x2150x3100 |
3,500 |
50 |
HiB-2000 |
2,000 |
3000x2150x3100 |
3,800 |
100 |
HiB-4000 |
4,000 |
3200x2150x3150 |
4,900 |
200 |
HiB-6000 |
6,000 |
3500x2150x3150 |
5,700 |
300 |
HiB-8000 |
8,000 |
4550x2200x3200 |
6,600 |
400 |
HiB-10000 |
10,000 |
5300x2300x3500 |
8,950 |
500 |
* Power consumption may be subject to water condition.
Certificates
